In the last couple of posts, I wrote about Open Policy Agent (OPA).
People almost always ask one question – what is the difference between
OPA and Gatekeeper when it comes to Kubernetes admission control? And,
generally, follow up with another question – so should I use Gatekeeper
instead of OPA?
Admittedly, the OPA documentation does a nice job explaining OPA and its
use cases. It also has a brief section about difference between
Gatekeeper and OPA. But for those just getting started with OPA, this
difference isn’t always clear.
So, here in this blog post, I will clarify the difference between OPA
and Gatekeeper. Or, to be precise, how Gatekeeper extends OPA.
Before we deep dive into differences, let’s make one thing clear. OPA is
a general purpose policy engine. It has a number of use cases like API
Authorization, SSH, Docker and more. Use of OPA is not tied to
Kubernetes alone, neither Kubernetes is mandatory for using OPA.
Kubernetes Admission Control is just one of OPA’s use cases. Please
refer the OPA documentation for more use cases. And, note, this list is
continuously expanding.
Gatekeeper on the other hand is specifically built for Kubernetes
Admission Control use case of OPA. It uses OPA internally, but
specifically for the Kubernetes admission control. So, we are going to
focus only on this use case of OPA here.
Mandatory labels use case
Let’s consider you want to enforce a policy that pods running on your
Kubernetes cluster must have appropriate labels. For e.g., a pod running
in front-end
namespace must have the app
label with one of
front-end
or dashboard
as value.
With OpenPolicyAgent (OPA)
The rego policy for this use case is as follows :
package k8s.labels
parameters.labels = {"front-end" : ["front-end", "dashboard"]}
deny[msg] {
namespace := input.request.namespace
required := {label | label := parameters.labels[namespace][_]}
provided := input.request.object.metadata.labels["app"]
not required[provided]
msg := sprintf("Missing required label %v",[required])
}
Now, this policy takes parameters.labels
as the list of required
labels per namespace. What happens when you want to add another
namespace? Change the value for parameters.labels
as {"front-end" :
["front-end", "dashboard"], "back-end" : ["reporting", "core"]}
.
This requires the policy to be updated every time there is a change in
labels or new namespace comes into picture. You can of course simplify
the change management by using bundle APIs to centrally manage all the
policies.
Now, let’s see how the same use case is solved by Gatekeeper.
With Gatekeeper
Gatekeeper uses OPA Constraint framework to define and enforce policies.
To implement the labels use case, you will need to define a
ConstraintTemplate and a Constraint using this template.
A ConstraintTemplate defines the policy that is used to enforce the
constraint and also, the general schema of the constraint. The
ConstraintTemplate for our labels use case will be as follows :
apiVersion: templates.gatekeeper.sh/v1beta1
kind: ConstraintTemplate
metadata:
name: podrequiredlabels
spec:
crd:
spec:
names:
kind: PodRequiredLabels
validation:
# Schema for the `parameters` field
openAPIV3Schema:
properties:
labels:
type: array
items: string
targets:
- target: admission.k8s.gatekeeper.sh
rego: |
package podrequiredlabels
violation[{"msg": msg, "details": {"required_labels": required}}] {
required := {label | label := input.parameters.labels[_]}
provided := input.review.object.metadata.labels["app"]
not required[provided]
msg := sprintf("Missing required labels %v",[required])
}
Now, using this ConstraintTemplate, create a Constraint as follows :
apiVersion: constraints.gatekeeper.sh/v1beta1
kind: PodRequiredLabels
metadata:
name: pod-required-labels
spec:
match:
namespaces: ["front-end"]
kinds:
- apiGroups: ["apps"]
kinds: ["Deployment"]
- apiGroupts: [""]
kinds: ["Pod"]
parameters:
labels: ["front-end","dashboard"]
So, did you notice the difference between OPA and Gatekeeper?
Let’s see these in closer details now.
Firstly, notice how the parameters are defined. In OPA version, we added
parameters to the policy. In Gatekeeper ConstraintTemplate, we defined
the schema for parameters. And defined the actual parameter value in
Constraint. This allows one to use same template and define multiple
constraints with different parameter values. So, for a new namespace,
you simply need to define another Constraint as follows :
apiVersion: constraints.gatekeeper.sh/v1beta1
kind: PodRequiredLabels
metadata:
name: pod-required-labels
spec:
match:
namespaces: ["back-end"]
kinds:
- apiGroups: ["apps"]
kinds: ["Deployment"]
- apiGroupts: [""]
kinds: ["Pod"]
parameters:
labels: ["reporting","core"]
Notice also that you can define the scope of objects where a Constraint
will apply through match
field. The match
field supports following
matches : kind
, namespaces
, excludedNamespaces
, labelSelector
,
namespaceSelector
and scope
.
So, you can define the template once and then, use multiple constraints
with varying scopes to apply same policy with varying effect. With OPA
version, you can write rego code to achieve the same.
Now that we have basic understanding of the different approaches, let’s
take a look at other Gatekeeper and OPA differences.
How policies and data is loaded in OPA and/or Gatekeeper?

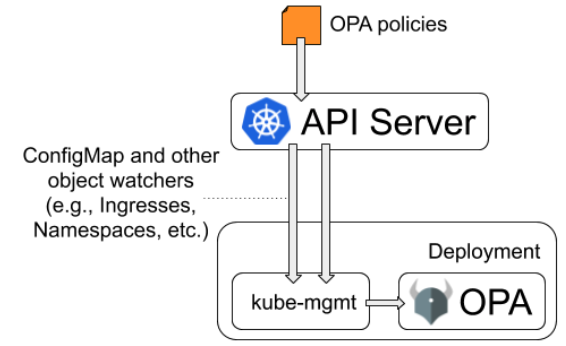

OPA kube-mgmt integration
This is also Gatekeeper v1.0 – OPA as admission controller with
kube-mgmt
sidecar. Basically, kube-mgmt
sidecar watches the various
configured Kubernetes Objects. It loads any configmaps labeled with
openpolicyagent.org/policy=rego
into OPA as policies. It also loads
any JSON from configmaps labeled with openpolicyagent.org/data=opa
In addition, kube-mgmt
also loads various Kubernetes Objects in OPA as
JSON. This is useful to make contextual decisions for scenarios where
current state of objects in Kubernetes is necessary. An example being a
policy to enforce unique ingress hostnames.
As an alternative to loading policies through configmaps, you can use
bundle APIs. Here, you can manage the policies at a central place, say
an S3 bucket, and configure OPA to periodically download the updated
policies and data. This is a powerful feature that allows you to
centrally manage the policies and also, use distributed OPA deployments
to enforce policies uniformly.
Gatekeeper evolved from this model, into its current v3.0 and higher.

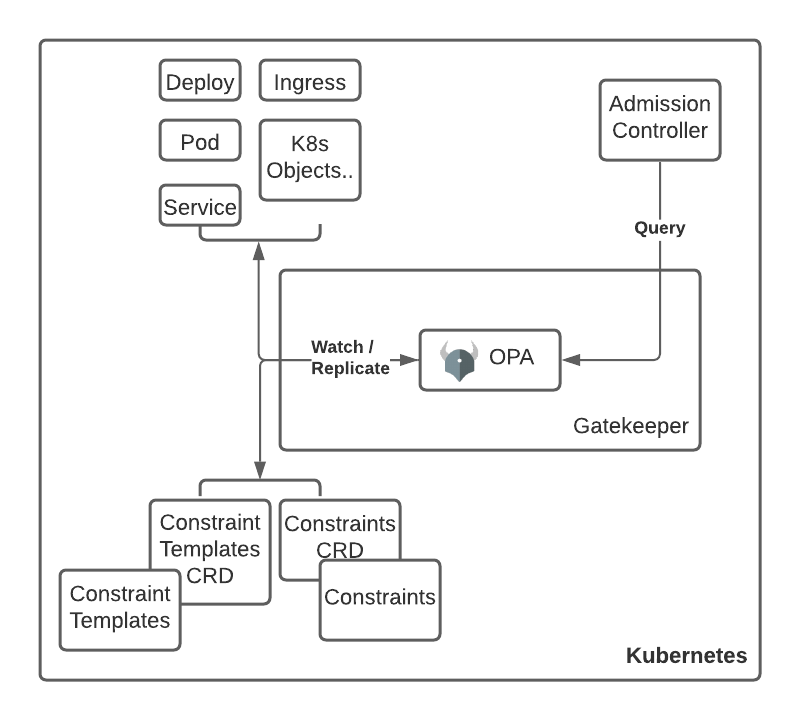

Gatekeeper v3.0
With Gatekeeper v3.x, integrates the admission controller with OPA
constraint framework. You write policies as ConstraintTemplates. And
then declaratively configure the policies through Constraints. So,
compared to the kube-mgmt
approach –
- Policies are defined as constraint templates & constraints instead
of configmaps/remote bundles
- To sync Kubernetes Objects into OPA, use the sync config resource.
Logging and Auditing in Gatekeeper and OPA
Both Gatekeeper and OPA kube-mgmt print logs to stdout. These can be
forwarded to external log aggregation systems like ELK, Datadog etc.
For decision logging, you can configure OPA to send the decisions to an
external HTTP server. You can then process these decision logs to
configure alerts, generate insights and so on.
Auditing existing objects with OPA kube-mgmt requires some work with
policies and replication. Basically, you need to configure kube-mgmt to
replicate the needed Kubernetes objects into OPA. Then, run the policies
against these objects to generate compliance audit.
Whereas Gatekeeper provides an audit feature in-built. All violations
are stored in the status
field of the failed Constraint.
Dry-run
Gatekeeper provides a dry-run
functionality which enables testing a
Constraint on a live cluster without actually enforcing it. Set the
enforcementAction: dryrun
on the Constraint to enable dry-run. Default
value is deny
. So, when it is set to dryrun
, the Constraint will be
evaluated against live objects. But no request will be denied even if
the Constraint fails. This allows you to test the Constraints without
adversely impacting the cluster operations.
Mutating Webhook
You can deploy OPA kube-mgmt as both validating webhook as well as
mutating webhook configurations. Whereas, Gatekeeper currently does not
support mutating admission control scenarios. This is work in progress,
and I hope it will be available soon with Gatekeeper.
Using OPA as an admission controller, we can prevent any non-standard
workloads from running in our Kubernetes cluster. But, we all want to
catch the non-conformance as early as possible. You can use OPA as a
CLI tool to validate manifests during PR checks. Or even simply run OPA
tests as a validation step in your deployment pipeline. Most
importantly, you can use the same policies for these validations that
will be enforced by OPA admission controller. Also checkout
Conftest which allows
you to write tests for your configuration files using Rego policies.
With Gatekeeper, you can maintain the constraint templates and
constraints in source control system and enable continuous deployment.
To enable validation of your deployment manifests in the deployment
pipeline, you will need to employ other tools like
Konstraint.
Finally.. so is it OPA OR Gatekeeper or is it OPA AND Gatekeeper?
So, like we saw, Gatekeeper is specifically built for Kubernetes
admission control use case of OPA. It uses OPA and provides
ConstraintTemplates to declaratively configure the policies. It does add
some nice features like auditing, dry run. And, also has some missing
pieces like the mutating webhook support. You can always use OPA and
Gatekeeper simultaneously to support both validating and mutating
webhook scenarios.
How has your experience been with Gatekeeper or OPA? Please let me know
your feedback or reach out for general discussions on
gaurav@infracloud.io / @Gaurav on OPA
slack /
@GGCTwts on twitter.
